InfraRed 13169Z/98 500W 235V SK15 3852744516

Name: InfraRed 13169Z/98 500W 235V SK15 3852744516
Brand: DR.Fischer
SKU: 3852744516
Price: 50.57 EUR
Availability: InStock

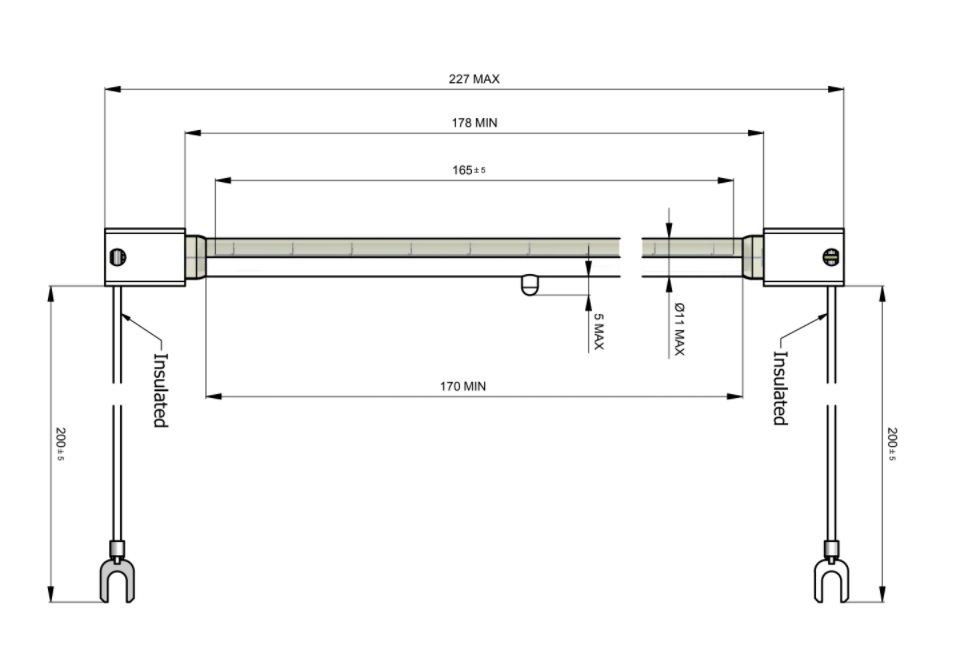

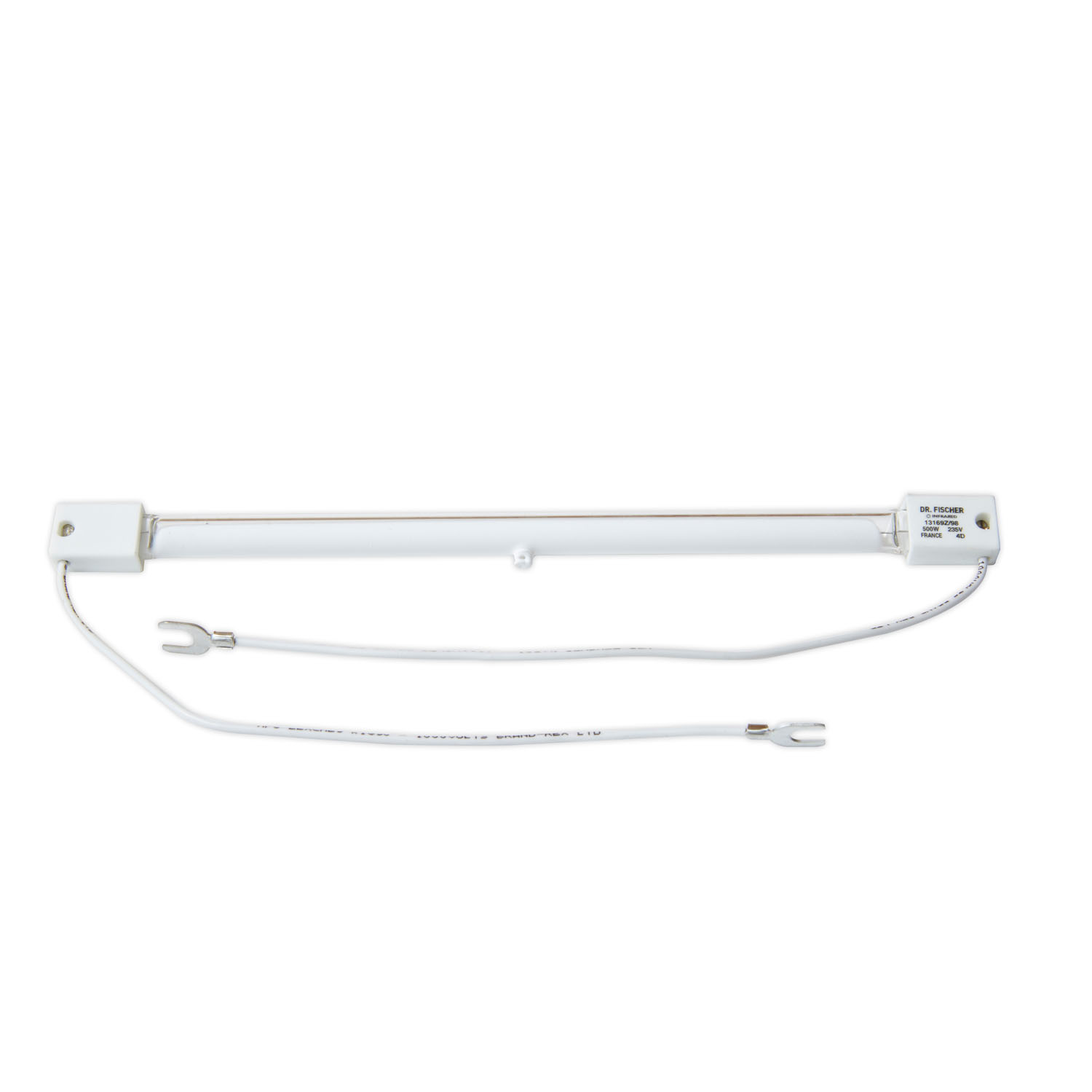

Infrared lamp 13169Z/98 with integrated white reflector for enhanced short-wave, Terminal - fork, SK15, 500W, total length 227mm, 2300°K, cable 200mm, bulb diameter 11mm

50,57 €

In Stock > 10 pcs

Do you need advice about something?

Ask a question

Do you want to monitor price and availability?

Start monitoring

Product description
Review
Related products

nfrared Lamp 13169Z/98 – White Integrated Reflector

The 13169Z/98 infrared lamp belongs to the White Integrated Reflector range, featuring an embedded white reflector integrated directly into the lamp body. This design increases the intensity of short-wave infrared radiation directed toward the target area without the need for a large external reflector.

The integrated reflector improves energy concentration on the exposed surface, resulting in higher heating efficiency and energy savings, while maintaining a compact system design.

Key Features

Infrared lamp with integrated white reflector
Increased short-wave IR intensity
Directed heat output without external reflector
Compact construction
Energy-efficient heating solution

Advantages of White Integrated Reflector Technology

Higher concentration of IR energy on the target surface
Simplified system design without large external reflectors
Reduced heat losses
More efficient use of installed power

Applications

Industrial heating processes
Food industry
Drying and curing
Preheating of materials
Technological processes requiring focused IR radiation

Applications: FOOD INDUSTRY, GLUE DRYING, THERMOFORMING

Product parameters

Categories:	InfraRed lamps
Manufacturer	DR.Fischer
EAN	8711500217417
Product number	3852744516
Source type	T11
Type	13169Z/98
Pieces in box	10 pcs
Cap-Base	SK15
Power	500 W
Voltage	230 V
Lifetime	5 000
Light color	Infrared
Length [mm]	227 mm
Diameter	11
Weight	30 g
Dimmable	Yes
Lighting position	horizontal
Radiation angle	180 °
Chromaticity temperature	2 400 °K
Cable length	200
